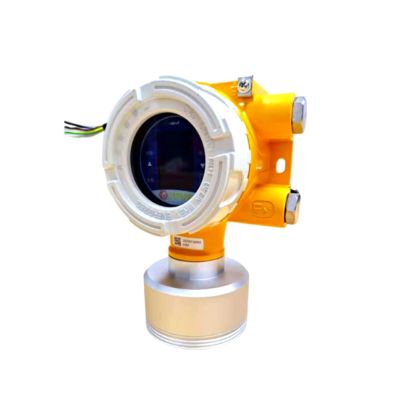

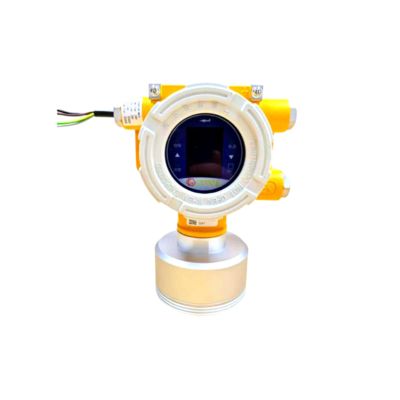

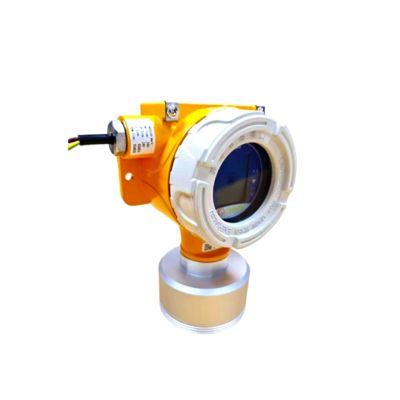

Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants
| Luogo di origine | Cina |
|---|---|
| Marca | Zetron |
| Certificazione | CE, Atex |
| Numero di modello | MIC100 |
| Quantità di ordine minimo | 1 set |
| Prezzo | USD 100-545/set- 879/set |
| Imballaggi particolari | 29*26*13,5 cm, 2,5 kg |
| Tempi di consegna | 1-10 giorni del lavoro |
| Termini di pagamento | T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Capacità di alimentazione | 1000 INSIEMI/settimana |
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Nome prodotto | MIC100 | Tipo | Rilevatore fisso |
|---|---|---|---|
| Tipi di gas rilevabili | Gas combustibili, gas tossici, COV | Precisione di misurazione | ± 3% della scala completa |
| Tempo di risposta (T90) | Gas combustibili: < 30 secondi | Temperatura di lavoro | -40 ° C a +70 ° C. |
| Certificazione a prova di esplosione | Exd IIC T6 Gb (gas combustibile) Exd ib IIC T6 Gb (gas tossico) | Garanzia | 1 anno |
Descrizione di prodotto
MIC100 Fixed Type 4-in-1 Gas Detector
The MIC100 Multi-Gas Online Detector is a high-performance, multi-functional gas detection terminal designed specifically for industrial safety applications. It can simultaneously monitor up to four different gases and can be flexibly configured to handle combustible gases, toxic and hazardous gases, and volatile organic compounds (VOCs).
The MIC100 integrates multiple advanced sensing technologies, including catalytic combustion, high-sensitivity electrochemical, precise non-dispersive infrared (NDIR), and fast-response photoionization (PID) sensors, ensuring superior measurement accuracy and reliability.
Its intelligent modular design, combined with a clear OLED display and convenient infrared remote control operation, greatly improves maintenance efficiency and enhances operational safety in hazardous environments. Additionally, the MIC100 features IP66-rated triple waterproof protection and strict explosion-proof certification, making it a reliable safeguard for personnel health and production safety.
Key Features
-
Convenient and Intuitive Operation: Features an OLED display for clear and intuitive concentration readings. Supports infrared remote control operation, allowing users to perform parameter settings and calibration without opening the housing in hazardous areas—significantly enhancing safety and convenience.
-
Integrates catalytic combustion, electrochemical, NDIR, and PID technologies to ensure broad-spectrum and high-precision detection.
-
Modular smart sensors support quick replacement and maintenance; equipped with an OLED high-definition display and infrared remote control, allowing parameter settings without opening the housing.
-
Convenient and Intuitive Operation: Features an OLED display for clear and intuitive concentration readings. Supports infrared remote control operation, allowing users to perform parameter settings and calibration without opening the housing in hazardous areas—significantly enhancing safety and convenience.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detectable Gas Types | Combustible gases, toxic gases, VOCs |
| Core Sensing Principles | Catalytic combustion, electrochemical, photoionization, thermal conductivity, NDIR infrared |
| Measurement Accuracy | ±3% of full scale |
| Repeatability Error | ±2% |
| Response Time (T90) | Combustible gases: < 30 seconds |
| Working Voltage | 24VDC (operating range: 10VDC to 30VDC) |
| Max Power Consumption | Toxic gases: < 1.5W; Combustible gases: < 2.5W |
| Signal Output Interfaces | 3-wire 4~20mA / 4-wire RS485 (simultaneous output); two sets of passive relay contacts (24VDC, 2A) |
| Housing Material | High-strength aluminum alloy |
| Dimensions (L×W×H) | 209 mm × 160 mm × 86 mm |
| Weight | Approx. 2.1 kg |
| Installation Method | Wall-mounted, horizontal or vertical pipe installation |
| Protection Rating | IP66 |
| Operating Temperature Range | Toxic gases: -20°C ~ +50°C; Combustible gases: -40°C ~ +70°C |
| Humidity Range | 10% ~ 95%RH (non-condensing) |
| Atmospheric Pressure Range | 86 kPa ~ 106 kPa |
| Explosion-Proof Certification | Exd IIC T6 Gb (combustible) / Exd ib IIC T6 Gb (toxic) |
| Metrology Certification | CPA Certified |
| Compliance Standards | GB15322.1-2019, GB3836.1/2/4-2021, GB12358-2006 |
Application Industries:
The MIC100 Multi-Gas Online Detector is widely used in petrochemical, oil and gas, chemical, metallurgy, environmental protection, and pharmaceutical industries. It provides continuous and accurate monitoring of combustible, toxic, and volatile gases in complex industrial environments, ensuring workplace safety, preventing gas leaks, and protecting both personnel and equipment through reliable real-time detection and alarm functions.
