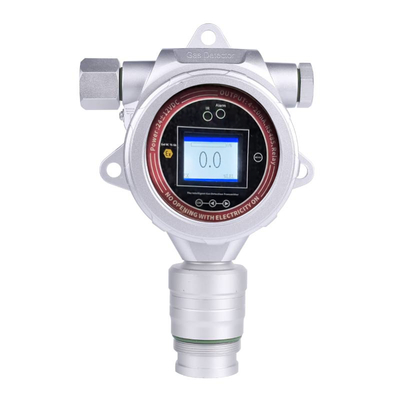

MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas

  • MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas
  • MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas
  • MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas
Luogo di origine Cina
Marca Zetron
Certificazione CE ATEX SIL
Numero di modello MIC500S
Quantità di ordine minimo 1 set
Prezzo USD 890/set - 7298/set
Imballaggi particolari 260x170x100 mm
Tempi di consegna 3-5 giorni di lavoro
Termini di pagamento T/t
Capacità di alimentazione 3000 set / mese

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome prodotto MIC500S Funzione misurare perdite e concentrazione di gas
Rilevare gas Gas combustibile/H2S/CO/O2/H2S/H2/VOC Segnale di uscita 4-20mA, RS485, Hart, relè
supporto personalizzato OEM, ODM, OBM Peso 2,5 kg
Classe di protezione IP65/IP66/IP67 Umidità 0-95%RH (nessuna rugiada)
Modalità di rilevamento Diffusore/Condotto di aspirazione della pompa Alimentazione elettrica 12-30V
Tipo di allarme Allarme sonoro+luminoso Display Display LCD
Utilizzo Produzione industriale,Personale,Controller per sonda gas - tipo bus,Allarme di fuga gas tossici e g Metodo di campionamento Diffusione,Pompa interna,fissa
Misurare 230*152*90mm
Lasciate un messaggio
Descrizione di prodotto
MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas
Professional-grade gas detection system with LCD display for continuous monitoring of over 500 gas types. Ideal for industrial safety applications.
Key Features
Infrared Remote Control
①Standard configuration includes the infrared remote control, it is possible for one-key operation via infrared remote
     control function key, which can achieve the operation without opening the cover under hazardous situations.
     such as: the functions like modification of the alarm point, density calibration, zero-point calibration, noise reduction,
     restoring the factory setting, and so on.

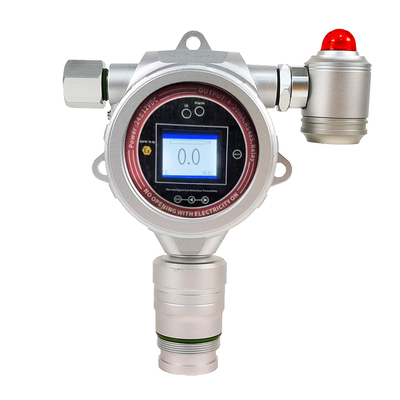

Multiple Optional Functions, Meet the Personalized Needs ■Integrated sound & light alarming device, split-type sound & light alarming device,
      24V DC stabilized voltage power supply.
■Wireless transmission
①It is possible to transfer data wirelessly to the cell phone, remote monitoring center,       monitoring computers and other monitoring equipment, which will utilize the upper-level host to realize       the functions of data analysis, storage, printing or the like on the computer.

 ■ Pretreatment system
①Room temperature and high humidity pretreatment system
②High temperature and high humidity pretreatment system
③High temperature and high humidity and high dust pretreatment system

■Accessory for connection with computer for monitoring
①Free upper-level host software, RS485 / RS232 converter
②For laptop without RS232 interface, USB / RS232 converting and connecting cable is needed, if the network transmission is needed, TCP / IP converter will be further needed.

 ■Installation type accessories optional
①wall mounting bracket;
②mounting clips for fixation on the pipes (1/2", 3/4" pipe);
③stainless steel threaded welding seat or flange to be installed on the pipeline      (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...);
④Rain cover;
⑤24VDC or 220AC sampling pump (sampling distance is 10 m);
⑥vacuum pump (sampling distance is greater than 40 m);
⑦24V switching power supply;
⑧pressure reducing valve;
⑨flow meters.

MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas 0
MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas 1
MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas 2
MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas 3
MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas 4
MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas 5
MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas 6
MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas 7
Technical Specifications
Detection Gas EX, Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc.
Range 0~1, 10, 100, 1000, 5000, 50000 ppm (mg/m³); 0~100% LEL; 0~200 mg/L; 0~20%, 50%, 100% VOL; Custom ranges available
Dimensions 210*170*85mm (L*H*W)
Weight 1.8 Kg
Installation Pipeline Type or Wall Mounting
Display 1.7-inch high-definition color screen
Environment Temperature: -40℃ ~ +70℃
Humidity: ≤10 ~ 95% RH (regular)
Approvals IP65; Exd Ⅱ CT6
Power Supply 12-30VDC (standard 24V), DC stabilized voltage switching power supply of 1A or greater
Accessories Manual, qualification certificate, warranty card, outer packaging box
Optional Items Alarms, Wireless Transmission, Pretreatment System, SD Card, Temperature/Humidity Measurement, Computer monitoring accessories
Applications
MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas 8
